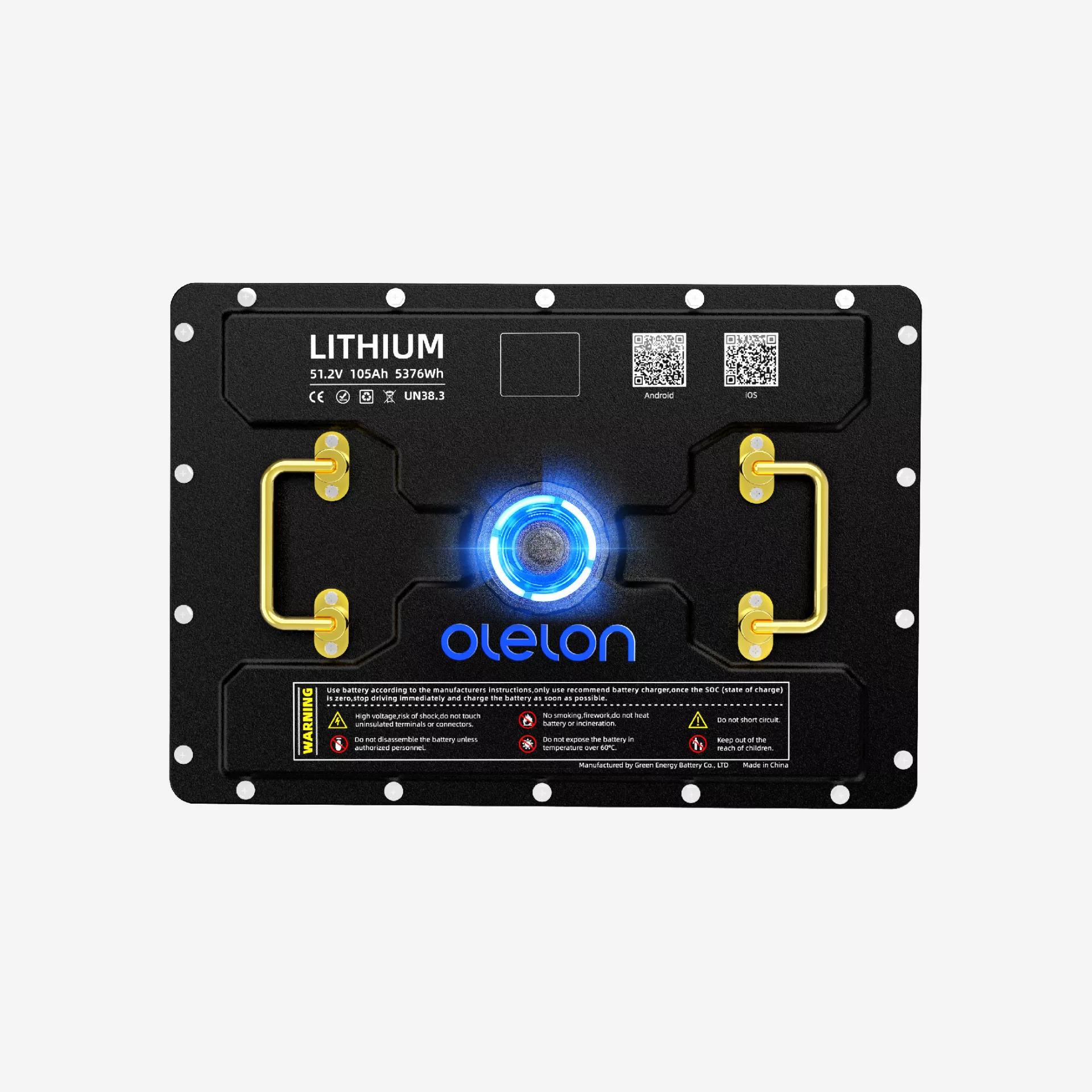

51.2V (48V) 105Ah LiFePO4 Golf Cart Lithium Battery
* Comparable to 48V 100Ah LiFePO4 Battery
Model: S51105
- Nominal Voltage: 51.2V
- Nominal Capacity: 105Ah
- Stored Energy: 5,376Wh
- Dimension: 17.52×11.81×9.45 Inch
- Weight No Counterweight: 110.23 lbs (50kg)
- Certifitactions: UN38.3, UL1642 Cell, UN3480, Class 9
- Communication: Bluetooth, CAN
- IP Rating: lP67
- Cells:Lithium Iron Phosphate (LFP) 1P16S
- Max Discharge Amps: 150A 480A(3sec) 315A(30sec)
Product Features
Eight-year Warranty, Global Insurance
BMS automatic fault diagnosis, Provides multi-protection
IP67,Waterproof, Corrosion-Resistant
Automatic Shut-off for Safety
UN38.3, UL1642 Cell, Rohs, CE
Maintenance-free, Hands-off Convenience
Large Voltage Smart Golf Cart Battery
The smart battery pack (LiFePo4) has smart Advanced BMS patented technology. Multiple protections for voltage current, temperature, and short circuit provide customers with easy and comfortable power supply.
The smart battery is featured with function to monitor automobile battery through mobile app to achieve battenstatus real-time monitor at the users end. The remote diagnosis function is favorable to find out the cause of the problem.
The battery highlighted with high density, small size, light weight and reliable performance is ideal for low speed vehicles, electric utility vehicles and ground cleaning vehicles.
SPECS
| Items | 51.2V 105Ah | 51.2V 125Ah | 51.2V 150Ah | 51.2V 210Ah |
|---|---|---|---|---|
| Nominal Voltage | 51.2V | 51.2V | 51.2V | 51.2V |
| Working Voltage | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V | 43.2V – 58.4V |
| Nominal Capacity | 105Ah | 125Ah | 150Ah | 210Ah |
| Energy | 5,376Wh | 6,400Wh | 7,680Wh | 10,752Wh |
| IP Rating | IP67 | IP67 | IP67 | IP67 |
| Weight | 50kg (110.23 lbs) | 57kg (125.66 lbs) | 63kg (138.9 lbs) | 90kg (198.4 lbs) |
| Dimension (LxWxH) | 445x300x240mm (17.52”x11.81”x9.45”) | 463x323x258mm (18.2” x 12.7”x10.2”) | 510x375x240mm (20.1” x 14.8” x 9.5”) | 539x454x250mm (21.2” x 17.9” x 9.8”) |
| Charging Temp. Range | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F | 32°F to 131°F |
| Max Continuous Discharge | 150A | 250A | 250A | 250A |
| Max Discharge 3 Sec | 480A | 480A | 480A | 480A |
| Max Discharge 30 Sec | 315A | 400A | 400A | 400A |
| Discharge Temp. Range | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F | -22°F to 140°F |
Applications
Olelon offer connection accessories fully compatible with diverse golf carts and are accompanied by intuitive and straightforward instructions. Our battery ensures exceptional ease of use.
Suitable for Brands below:
Club Car
E-Z-GO
ICON EV
Yamaha
EPIC
Honor LSV
Advanced EV
Kodiak
MOKE CARTS
Pilot Car
Polaris
Vivid EV
Bintelli
Others / OEM
......
For specific brands of models, please contact our customer service to give you satisfactory service.
GOLF CART LITHIUM ACCESSORIES
Dash Mounted Indicator Meter
Displays real-time voltage, amps, and remaining charge percentage.
Waterproof Charger
Charger with snap attachment, featuring reliability, safety, and short circuit protection.
Fixing Base
Secure the battery to the golf cart chassis, noting that mounting bases differ by vehicle model.
Dashboard and Switch Split Cable
Connect the battery to the battery dashboard and switch using this split cable.
Vehicle Charging Port Connector
Connects the electric golf cart battery to an external charger for safe charging.
Fastening accessories
Secured to the chassis with screws through hooks connecting the Battery Body Buckle to the carts.
DC-DC Converter (optional)
Converts 48V/36V golf cart batteries to stable 12V (60A, 720W max) for efficient accessory/light power.
US Charging Cable
EV charging cables safely power your car's battery for convenient charging.
Positive Customer Feedback
Reliable performance, long-lasting power, easy installation, great customer service, and excellent value for money.
John Doe
Golf Cart Owner
As an installation technician, I appreciate Olelon's user-friendly batteries and recommend increased collaboration with vendors like them.
Monie
Maintenance engineer
Olelon has boosted my golf cart accessory business, particularly with electric parts, due to their worry-free battery installation and service.
Diana
Golf Cart Parts Store
Olelon Lithium Battery delivers powerful performance, longer range, and extra storage space—it's truly amazing!
Gary
Golf Cart Parts Store
COMMON SMART LITHIUM BATTERY QUESTIONS
Can i put lithium batteries in an old golf cart?
Yes, Lithium Bateries are the only true “Drop-In-Ready” lithium bateries for golf carts.They are the same size as your curent lead-acid bateries which alow you toconvert your vehicle from lead-acid to lithium in less than 30 minutes. They are the same size as your current lead-acid batteries which alow you to convert your vehidlefrom lead-acid to lithium in less than 30 minutes.
What is a BMS? What does it do and where is it located?
BMS is short for Batteny Management System, it’s like a bridge between batery and users, The BMS protects the cells from geting damaged – most commonly fomover or under-voltage, over current, high temperature or external shor-circuiting. The BlyS willshut of the bateryto protect the cels from unsafe operating conditions. All Olelon batteries have built-in BMS to manage and protect them against these types of issues.
The BMS of our golf car bateries is a hioh-tech inovative design made to protect the lithium cels. Features inaclude: Remote monitoring with OTA (over the airl,Thermalmanagement, and multiple protections, such as Low Voltage Protection Switch, Over Voltage Protection Switch, Short Circuit Protection Switch, etc.
What can l use a Lithium Battery for?
Our Bateries are commonly used in golfcarts, forklifts,aerial work platforms, floor cleaning machines, etc. We are dedicated to lithium batteries for over 10 years,so weare professional in lithium-ion replacing lead-acid feld. What’ more,it can be applied in energy storage solutions in your home or power your truck air-conditioning.
How safe are Lithium-lon Batteries?
Our LiFePO4 batteries are considered to be safe, non-flammable and non-hazardous for superior chemical and mechanical structure
They can also withstand harsh conditions, be it freezing cold, scrching het or rouoh terain. When subiected to hazardous event, such as colision or short-circuiting.they won’t explode or catch fire,significantly reducing any chance of harm. lf you’re selecting a ithium batery and anticipate use in hazardous or unstableenvironments, LifeP04 battery is likely be your best choice.lt’ s also worth mentioning that they are non-toxic, non-contaminating and contain no rare earth metals,
making them environmentally conscious.
What is the life expectancy of the battery?
Olelon batteries can be used around 3,500 life cycles. Battery design life is around 10 years,and we offer you 6 years warranty. Therefore, even though there is more
upfront cost with a Olelon LiFePO4 Battery, the upgrade saves you up to 70% battery cost over 6 years.
